SYSTEM INTEGRATION

Enable New Technology Opportunities with System Integration

System Integration

DISCOVER POSSIBILITIES OF SYSTEM INTEGRATION

What is System Integration?

System integration is the challenge of combining devices from different technologies on the same platform or in the same package.

It is used in a wide variety of technologies, such as microelectronics, optics, photonics, MEMS, microfluidics and combinations of these put together, also known as Hybrid Integration.

Examples of system integration in the semiconductor industry are vast, such as high-speed high-density Datacom transceivers, compact high-speed telecom receivers and bio-medical sensors to name a few.

How to enable System Integration?

We speak about System Integration when we combine at least two devices stacked and interconnected, or packaged side-by-side on a substrate.

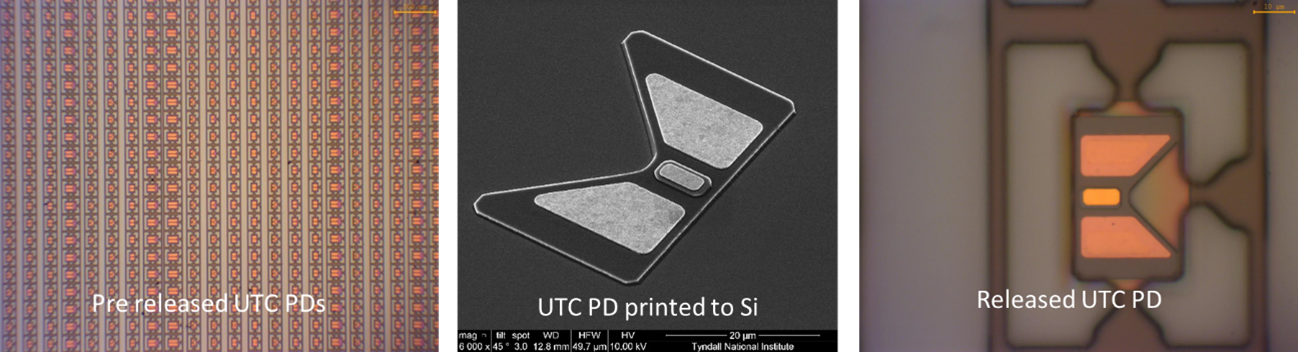

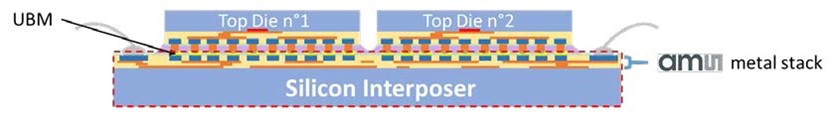

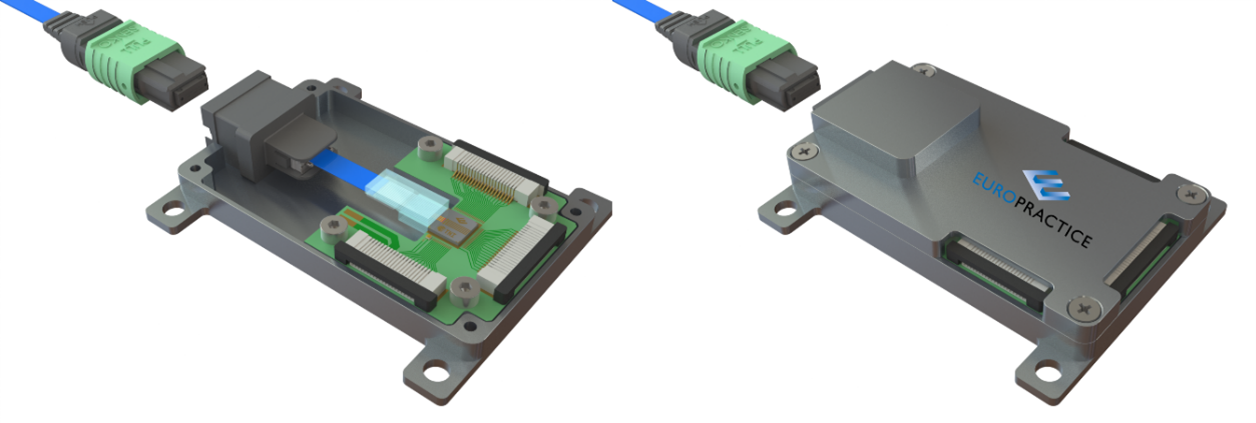

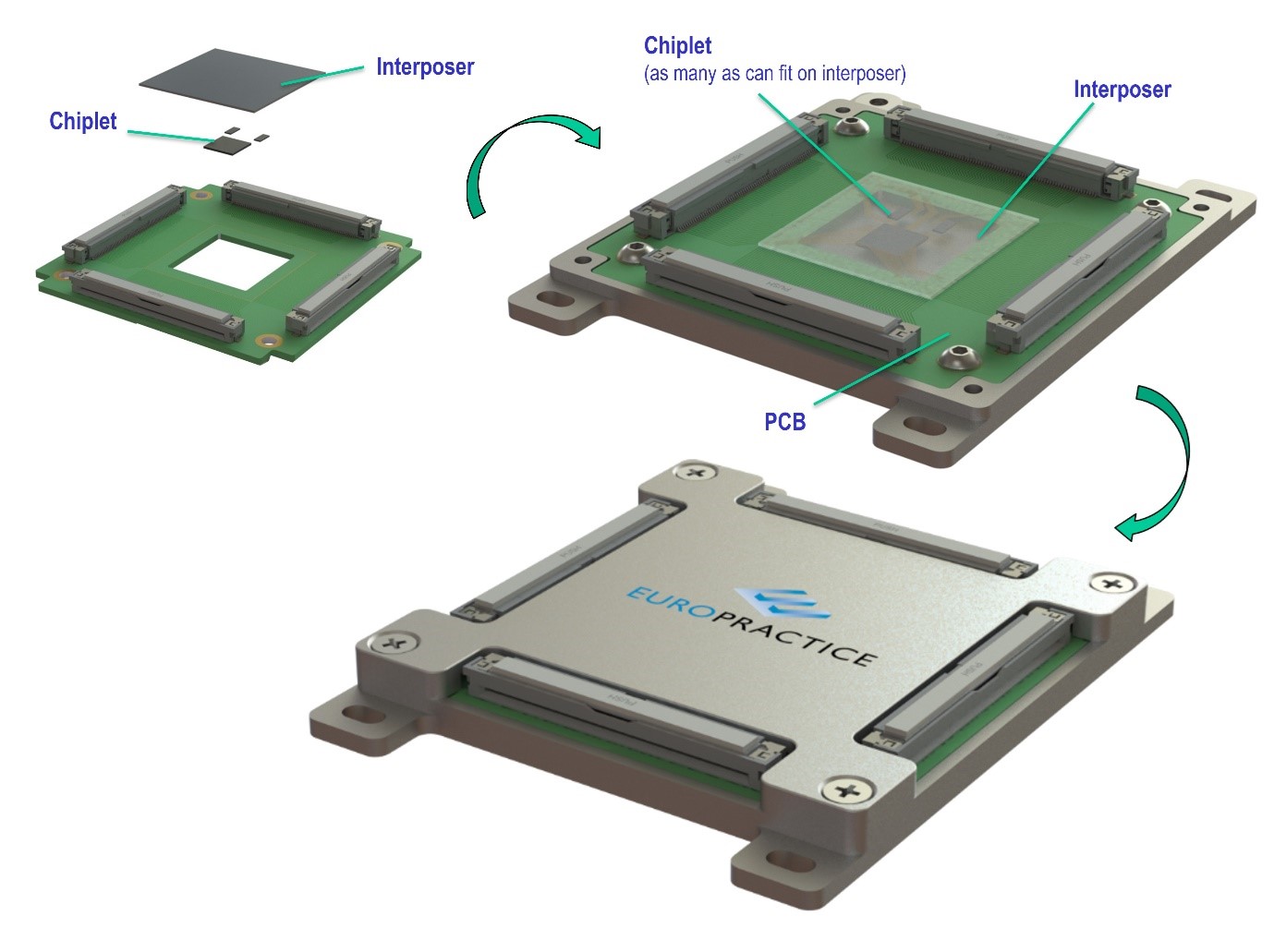

These combinations are made possible through access to a variety of specialised services of key enabling technologies. This includes pick-and-place, flip-chip, Ball Grid Arrays (BGAs), Cu pillars, wafer-level fan-outs as well as silicon interposers, which facilitate 2.5/3D integration of ASICs and Photonic Integrated Circuits (PICs) through die stacking techniques.

You can explore these solutions in our offer below.

How can you benefit from it?

System Integration opens up new technology and application possibilities. This can be beneficial on many levels, from energy savings through lower power consumption, to faster data rates, better signal integrity and smaller footprints.

VIRTUAL DEMO

EUROPRACTICE OFFER

This service is accessible for all EUROPRACTICE customers. It is provided by our partner Fraunhofer.

Multi-Project Fan-Out Wafer Level Packaging
Design Rules & Materials	Multi-project wafer processing is an established approach in semiconductor manufacturing for fast and low-cost prototyping. This idea is now transferred to fan-out wafer level packaging. Here dies from different sources or different technologies with varying thickness and size can be handled and packaged with one integration technology. This offers a path to a well adopted technology, especially for RF applications.
MPFOWL Package Specification	Die delivery: WafflePack, wafer, wheel Die size: 1.5 – 7 mm edge length Die thickness: 200 – 300 μm Package thickness: 450 μm Package size: 10×10 mm², smaller package size possible with extra effort Metal layers: 2 Integration of e.g. antennas and passive structures in RDL Pin-out: BGA – Pitch: 500 μm – Ball size: 300 μm – Solder: SnAgCu Defined packaging materials
Description of Services	– Engineering service including one time design rule check (DRC) – Early Access Engineering run (production and delivery of untested packages) Packaging in Multi-Project Fan-out Wafer Level Technology according to Design Rules IZM The services are subject to that the Client provides Fraunhofer IZM with the following information/goods: – FOWLP package design according Design Rules IZM (“Layout”) – Chips to be processed including 5 to 10 set-up chips
The manufacturing will be done in a mold-first face-down flow with the following steps:
	Die assembly on a temporary carrier
	Overmolding and generation of the multi project reconfigured substrate
	Release from the temporary carrier
	• 1st Pi passivation layer generation in a wafer-level process • 1st copper layer generation – PVD & galvanic deposition
	• 2nd Pi passivation layer generation • 2nd copper layer generation – PVD & galvanic deposition
	3rd Pi passivation layer generation
	Solder Ball generation
	Singulation by dicing

You can find more details in the MPFOWLP flyer

Contact

Dr. Tanja Braun

e-mail: europractice@izm.fraunhofer.de

Fraunhofer Institute for Reliability and Microintegration IZM

Here you can download NDA for this technology.

Fraunhofer and CMP provide access to this ams technology.

ams 0.35µm wafer-level bumping
Technology characteristics	Solder bumping consists in manufacturing metal spheres acting as interconnections for flip-chip. Those spheres are composed of a Sn/Ag/Cu alloy (SAC). Before the sphere can be deposited, the deposition of an Under Bump Metalization (UBM) layer is required. This option, available on ams 0.35 & 0.18 runs only, is operated at wafer-level within ams cleanroom after CMOS process. It allows the deposition of an array of solder balls at wafer-level, with an I/O pitch compatible with traditional printed circuit board (PCB) assembly processes. For mechanical reasons solder balls are usually evenly distributed over the whole chip surface and electrically connected to the IC‘s CMOS pads by means of a redistribution layer (RDL) included in the option.
Application area	Single die flip-chip packaging
Design Kit version	Option supported by ams hitkit 4.10 ISR15, through an add-on

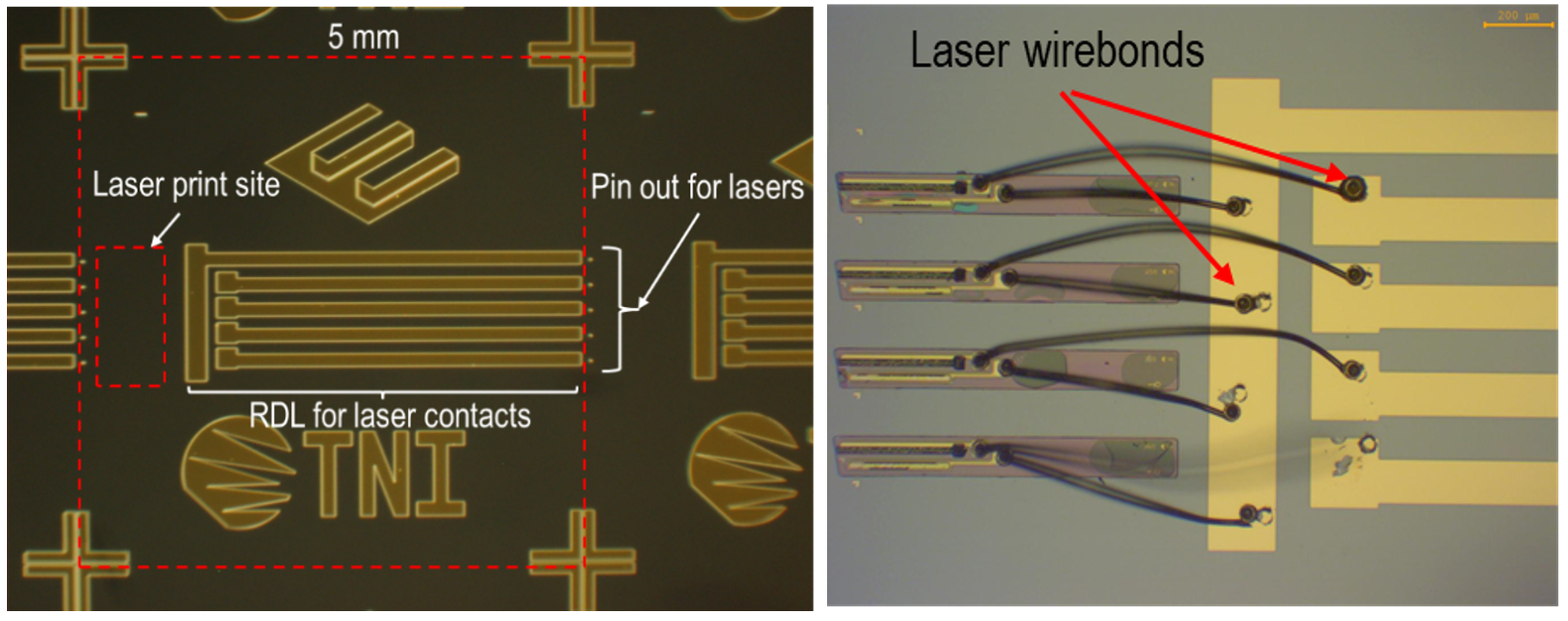

Laser Integration for LioniX SiN-Photonics

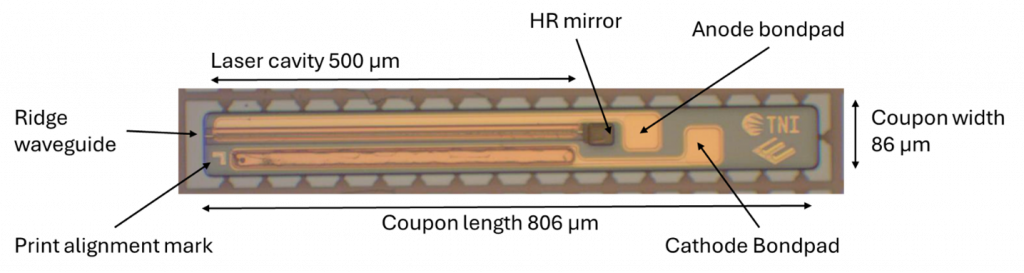

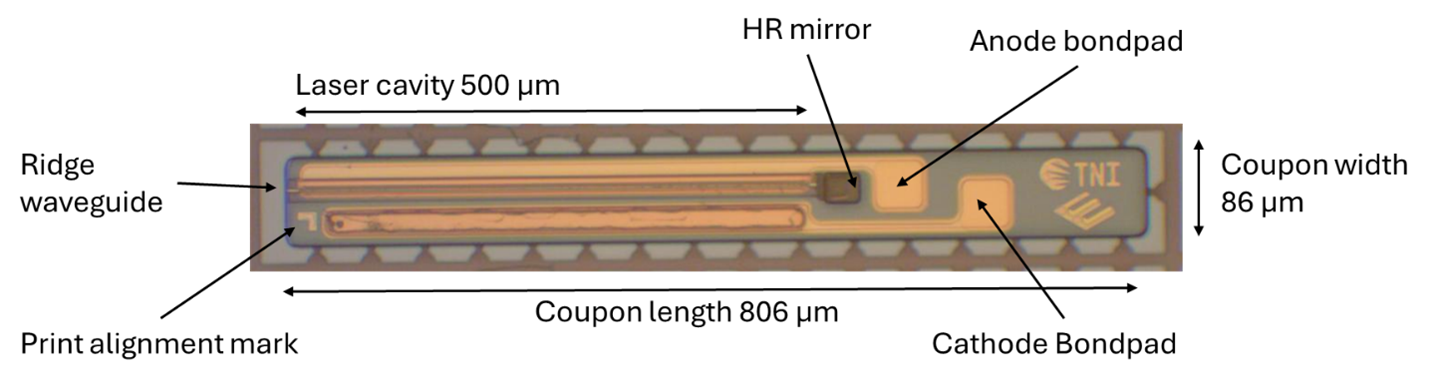

Tyndall, in partnership with LioniX International, offers laser integration to Silicon Nitride MPW runs. The tunable laser building block provides the user with a narrow linewidth source with specifications given in the table below. As with all other building blocks offered in LioniX PDK, it allows the user to easily connect the items together and create a customized or application specific design.
	Wavelength Tuning Range	On-Chip Power	Linewidth
Tunable Laser Building Block	C-band	>1 mW	<100 kHz
By offering the tunable laser building block, the MPW user can get access not only to LioniX’s well known low-loss waveguide platform TriPleX™, but also to the unique integration of an InP gain section to the PICs all through using a designer PDK. • This is a post-process following an MPW run. • Dedicated runs are possible and can be made available by agreement. Please contact Tyndall for more information/quotation.
Application area	Telecoms/Datacom, C-band
Technology	Telecoms/Datacom, C-band
PDK Manual	Available upon request
Packaging	Available upon request

Contact

Ramsey Selim

e-mail: europractice.gateway@tyndall.ie

Tel: +353 (21) 234 6613

Microfluidic system integration
This service is accessible to all EUROPRACTICE customers. Allows to integrate microfluidic functionalities on top of Si CMOS sensor technology with noble metal top surface finish by means of wafer-level glass microfluidics. These technology combinations are suited for the fabrication of chemical, bio-chemical and medical devices but could also be of potential interest for high power applications that need liquid cooling for thermal management.
Building blocks	Si CMOS with noble metal sensor technology (add-on on X-FAB XH035) Multi-layer glass wafer fabrication Si-to-glass wafer-level bonding, key features: – room temperature bonding for encapsulation of bio-materials – ultra-thin selective adhesive transfer technology with excellent uniformity over large areas – compatible with a wide range of materials, e.g. CTE – compatible to wide range of P, T, pH – abundance of Adhesives to suit customer assay – bio-compatibility assured
Design rules	The combination of these building blocks provides you an integrated solution of a Si CMOS sensor chip with micro-scaled glass microfluidic functionalities in direct contact with the Si surface. Additional routing layers inside the glass interposer chip may facilitate the further integration to macro-sized fluidic interfaces. Apart from the individual building block design rules, specific rules apply for the integration. Electrical access is provided through wire bonding and fluidic connection is realized through standard-sized fluidic access holes

Contact

Riet Labie

e-mail: Riet.Labie@imec.be

Tel: +32 (0) 16 281 237

This technology is provided by CMP. Copper pillars are manufactured at wafer-level by STMicroelectronics. This interconnection is composed of an Under Bump Mettalization (UBM), upon which a pillar of copper is grown, a capping of Sn/Ag allows the die to be assembled on a substrate by reflow process. The dimensions of this copper pillar are approximately 62 µm in diameter for 65 µm in height, thus allowing a fine pitch (down to 90 µm).

Accessibility conditions:

Copper pillar option is available on CMOS28FDSOI, BiCMOS055, CMOS065 MPW and dedicated runs as options.
FC44S pad class must be used in the design to be compatible with this option.
