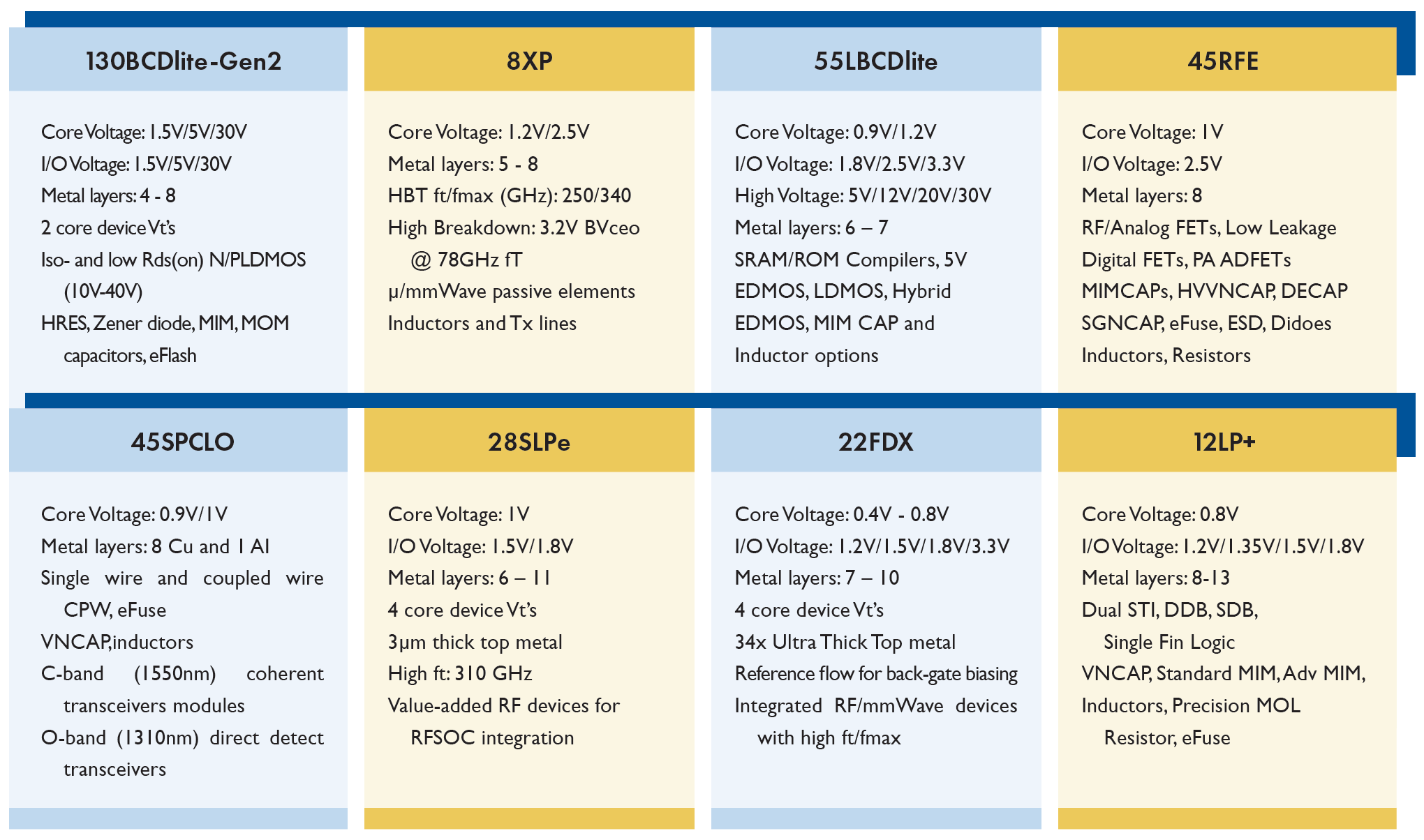

EUROPRACTICE provides access to the following GlobalFoundries technologies.
EUROPRACTICE provides access to the following GlobalFoundries technologies.
GF’s SiGe 8XP technology drawn at 130nm features low noise figures, high linearity, gain, breakdown and operating voltages, together with simplified impedance matching and excellent thermal stability. Advanced SiGe heterojunction bipolar transistors (HBTs) provide superior low-current and high-frequency performance while enabling the technology to operate at high junction temperatures.
GF SiGe 8XP | |
|---|---|
Technology characteristics | Core voltage: 1.2V / 2.5V I/O voltage: 1.5 / 1.8V / 2.5V / 3.3V TSV Metal layers: 5 – 7 of Cu and AI Thick Al and Cu “MA” add-on module for high Q inductors Forward Bias, PIN and Schottky Barrier Diodes High performance SiGe NPN transistors (fT/fmax 250/340GHz) High breakdown fT= 78GHz, 3.2V BVceo Temperature Range: -55°C to 125°C Device offerings: SchottkyDiode, P+ poly resistors, Thin oxide NMOS varactor/ decoupling capacitor, Spiral inductors, Transmission lines, mmWave passive elements, eFuse, Triple-well NFETs, PIN Diode, Hyper abrupt (HA) varactor, MIM capacitor, Dual MIM (3 fF/μm2), High-RsRR poly resistor, TaNmetal KQ resistor, True triple well (T3) FET |
Wafer size | 12inch |
Manufacturing location | Fab9 – Burlington, Vermont, USA
|
Deliverables
| 50 bare dies
|
Signoff tools
| Cadence, Mentor Graphics
|
Foundational IPs
| Standard cell libraries: GLOBALFOUNDRIES GPIO : GLOBALFOUNDRIES SRAM : ARM / GLOBALFOUNDRIES The ARM IPs have to be requested directly at ARM via DesignStart portal For GLOBALFOUNDRIES IPs contact Fraunhofer IIS |
Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 6 months
|
mini@sic characteristics
| Not supported
|
Bumping
| Cu Pillar and SnAg
|
The GF 130BCDLite process is tailored for cost-effective mobile/consumer applications: DC-DC, AC-DC, PMIC, Wireless and Quick Charging.
GF 130BCDLite | |
|---|---|
Technology characteristics | Core and I/O Voltage:1.5V/5V/30V 8-12 Ω-cm p-type substrate (noise isolation) Poly layers: 1, Metal layers: 4-8 of Cu Top metal thickness: 30kA and/or 9kA Recommended metal stack on MPW: 1P7M TM30K Metal: Cu, AI(RDL) Device offeringss: High gain MOSFETs with Regular and NativeVt, BJTs, Diodes, Single Mask MIM, Resistors, eFuse, Inductors, ESD, Pads. RF Devices: MOSFETs, LDMOS, Capacitors and Diodes Special devices: MTP, OTP, eFlash Passivation: Single or Dual |
Wafer size | 12inch |
Manufacturing location | Fab7 – Woodlands, Singapore
|
Deliverables
| 50 dies for general MPW, 25 dies for mini@sic run
|
Signoff tools
| Cadence, Synopsys, Mentor Graphics
|
Foundational IPs
| Standard cell libraries: ARM GPIO : GLOBALFOUNDRIES SRAM : ARM The foundational IPs have to be requested directly at the IP vendor: – ARM via DesignStart portal – For GLOBALFOUNDRIES GPIO contact Fraunhofer IIS |
Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 5 months
|
mini@sic characteristics
| Supported Block size: 1750µm x1750µm (incl. Crackstop) BEOL stack: 1P7M_30kA PPOLYF_U HIGH SHEET RESISTANCE: 2k MIMCAP OPTION: 1p0f_SM Interconnect: Wirebond |
Bumping
| Available only for general MPW (Solder bump)
|
This comprehensive, highly-configurable and production-proven 130nm Low Power process enables integration of logic, RF, analog and non-volatile memory to provide a cost effective solution.
GF 130LP | |
|---|---|
Technology characteristics | Core voltage: 1.2V / 1.5V I/O voltage: 1.8V / 2.5V / 3.3V Poly layers: 1, Metal layers: 2-8 ESD mask for I/O ESD protection circuitry For analog/RF processes, the following options are available: Deep Nwell, Capacitors, Resistors, Multi-Vt transistors, Inductors Single or Dual passivation |
Wafer size | 12inch |
Manufacturing location | Fab7 – Woodlands, Singapore
|
Deliverables
| 50 bare dies
|
Signoff tools
| Mentor Graphics
|
Foundational IPs
| Standard cell libraries: ARM GPIO : Aragio SRAM : ARM / Synopsys The foundational IPs have to be requested directly at the IP vendor: – ARM via DesignStart portal – Synopsys via DesignWare IP portal – For Aragio GPIO contact Jennifer Blakeman |
Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 5 months
|
mini@sic characteristics
| Not supported
|
Bumping
| Solder bump
|
Built on the 55nm Low Power extended (LPx) base platform with 1.2V and 2.5V CMOS logic, the 55LPx-NVM offers consumer and automotive grade embedded NVM for MCU, IoT, NFC, Bluetooth and WiFi applications. This module offers high density eFlash and HV devices in addition to the base platform features such as DG I/O, multi-Vt transistors, SRAM, DNwell and MIMCaps.
GF 55LPx-NVM | |
|---|---|
Technology characteristics | Core voltage: 1.2V I/O voltage: 1.8V/2.5V/3.3V Poly layers: 1,Metal layers: 6-8 Metal: Cu, AI(LB) Polyimide or hard-dielectric final passivation Core transistor Vt: High Vt, Low Vt, Std Vt, Super low Vt, Super High Vt Poly and diffusion resistors,OP resistors NFET in n-well, PFET in p-well capacitor, VN BEOL capacitor, MIM, APMOM EDMOS: 5V N/P,Body Iso-N, Native FET: 1.2V N; 2.5V N Electrically programmable fuse, Embedded flash and high voltage option Ultra Thick Metal layer 3 µm thickness Cu layer 1K/2K ohm/sq Poly resistor with HR mask Temperature range:-40°c to 125°c |
Wafer size | 12inch |
Manufacturing location | Fab7 – Woodlands, Singapore
|
Deliverables
| 50 bare dies
|
Signoff tools
| Mentor Graphics
|
Foundational IPs
| Standard cell libraries: ARM / Silvaco GPIO : Aragio SRAM : ARM / Moblie Semi The foundational IPs have to be requested directly at the IP vendor: – ARM via DesignStart portal – For Aragio GPIO contact Jennifer Blakeman |
Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 5 months
|
mini@sic characteristics
| Not supported
|
Bumping
| Cu Pillar and SnAg
|
Built on the GLOBALFOUNDRIES’ low power enhanced (LPe) platform, the 55nm RFCMOS technology combines the benefits of a rich baseline logic technology and IP ecosystem with world-class RF features and PDKs, enabling a seamless transition to digital logic SoCs with higher levels of RF integration. Using a multi-Vt baseline logic process the 55nm LPe-RF technology adds RF-specific features such as Deep n-well devices, LDMOS/EDMOS FETs, Parasitic bipolar devices, MOS/HA varactors, Precision resistors, MIMcaps/MOMcaps, Inductors and Thick metals.
GF 55LPe-RF | |
|---|---|
Technology characteristics | Core voltage: 1.2V I/O voltage: 1.8V/2.5V/3.3V Temperature range:-40°c to 125°c Poly layers: 1, Metal layers: 6-8 Metal: Cu, AI(LB) Polyimide or hard-dielectric final passivation Core transistor Vt: High Vt, Low Vt, Std Vt Vertical PNP and NPN bipolar transistor HR poly resistor, OP, N-well and salicide resistors NFET in n-well,PFET in p-well capacitor,VN BEOL capacitor APMOM, 5V LDMOS, 5V isolation EDMOS, SRAMs Electrically programmable eFuse, Native Inductors (2x/4x wires), 3µm thick Cu wire Legacy MIMICAP |
Wafer size | 12inch |
Manufacturing location | Fab7 – Woodlands, Singapore
|
Deliverables
| 50 bare dies
|
Signoff tools
| Mentor Graphics
|
Foundational IPs
| Standard cell libraries: ARM / Synopsys GPIO : Aragio / Innopower SRAM : ARM / Synopsys / Innopower The foundational IPs have to be requested directly at the IP vendor: – ARM via DesignStart portal – Synopsys via DesignWare IP portal – For Aragio GPIO contact Jennifer Blakeman |
Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 5 months
|
mini@sic characteristics
| Not supported
|
Bumping
| Cu Pillar and SnAg
|
45SPCLO is a 45 nm generation, SOI, CMOS technology that supports (ASIC) designs and custom logic designs. It offers power, area, and performance advantages and efficiency providing more data per watt per fibre per Laser. Monolithic integration of RF, digital and Si-Photonic circuits with higher energy efficiency and higher modulation speed. Ideal for applications like Automotive Lidar, IoT, Cloud, Frictionless Networking, Virtualization and Hierarchical AI.
GF 45 SPCLO Silicon-Photonics | |
|---|---|
Technology characteristics | CMOS technology substrate resistivity is in the range of 9-18 ohm-cm Core Voltages: 0.9V, 1V, IO Voltages: 1.5V, 1.8V 1.12 nm thin gate oxide for 0.9 V 2.5 nm thick gate oxide for 1.5 V and 1.8 V Mini. lithographic image of 40 nm (gate only) Operating junction temperature: -40°C to 125°C One BEOL STACK options: 9LM Metallization stack Seven levels of all-copper global metal 1x, 2x, and 8x thick wires at relaxed pitches Low-K and TEOS/FTEOS Inter Level Dielectrics Planarized passivation and interlevel dielectrics High-value resistor 1.5K Ohms/square |
Photonic offering
| C-band (1550 nm) coherent transceivers modules O-band (1310 nm) direct detect transceivers |
Photonic waveguide
| Polarization splitter & rotator, modulators, detectors Phase shifter, connection options (Polymer bundle or Fiber Butt) Vertical grating incoupler: iograt |
Device offering
| Regular Vt, floating-body FETs Ultrahigh Vt, floating-body FETs Analog, body-contacted FETs Thick-oxide, body-contacted FETs Precision resistors,Thick-oxide decoupling capacitor Efuse, Ge EPI Photo diode, Nitride wave guide in MOL |
Wafer size
| 12inch
|
Manufacturing location
| Fab8 – Malta, New York, USA
|
Deliverables
| 50 dies for general MPW and 50 dies for mini@sic run
|
Signoff tools
| Cadence, Synopsys, Mentor Graphics
|
Dummy filling
| By customer
|
MPW block size
| 25mm² with fix dimensions of 5mm x 5mm
|
MPW Turnaround time
| 5-6 months
|
Mini@sic characteristics
| Supported Block size: 5mm x 2.455mm or 2.455mm x 5mm (Pre-Shrink die size) |
Bumping
| Upon request |
45RFSOI takes advantage of a 45nm partially-depleted SOI server-class technology base that has been extensively evaluated for use in mmWave applications and in high volume production at multiple GF fabs since 2008. Today, this baseline process has RF-centric enablement, topped with device and technology additions, including thick copper and dielectric back-end-of-line (BEOL) features which enable 45RFSOI to handle the demanding performance requirements of 5G solutions.
GF 45RFSOI | |
|---|---|
Technology characteristics | High-resistivity substrate ≥7500 Ω-cm Three BEOL STACK options: 7 or 8 Levels of Cu Wiring and Thick Al LD or LB Operating junction temperature: -40°C to 125°C VDD of 0.9 V or 1.0 V (thin oxide) Two gate oxide thicknesses High density / High Q MIMcap, High-value resistor RF and mmWave offering: Inductors, Microstrip, Coplanar Waveguides, Passives Fuse: eFuse |
Wafer size | 12inch |
Manufacturing location | Fab10 – East Fishkill, New York, USA
|
Deliverables
| 50 dies for general MPW, 25 dies for mini@sic run
|
Signoff tools
| Cadence, Mentor Graphics
|
Foundational IPs
| Standard cell libraries: ARM GPIO : ARM SRAM : N/A The foundational IPs have to be requested directly at ARM via DesignStart portal |
Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 5.5 months
|
mini@sic characteristics
| Supported Block size:1500µm x 1500µm (incl. Chipguardring) BEOL stack: Option #18 (8LM_3Mx_1Cx_1Ux_2Ox_LD) Interconnect: Inline Wirebond Turnaround time: ca. 6 months |
Bumping
| Available only for general MPW (Cu Pillar and SnAg)
|
The GF 40LP process technology platform is ideal for power- and price-sensitive mobile and wireless applications with flexible mixed-technology options for RF, low voltage and automotive. The process also enables mmWave solutions for applications that require greater than 30GHz operation.
GF 40LP-RF/mmWave | |
|---|---|
Technology characteristics | Core voltage:1.1V I/O voltage:1.5V/1.8V(Medium gate oxide), 1.8V/2.5V/3.3V (Thick gate oxide) Poly layers: 1, Metal layers: 6-8 3 μm thickness copper layer for Inductors Temperature range:-40°c to 125°c Core transistor Vt: High Vt, Low Vt, Std Vt, Super-low Vt Regular-Vt NFET/PFET, Low-Vt NFET/PFE Thin/Thick-oxide NCAP, Thin/Thick-oxide PCAP APMOM,P Poly Resistor,Inductor,Transmission Line Precision resistors, MIMcaps/MOMcaps, Inductors, Thick metals and Transmission lines. |
Recommended Metal Stack on MPW
| Option # 12 (6L1x_1T6x_1T18x_LB)
|
Wafer size | 12inch |
Manufacturing location | Fab7 – Woodlands, Singapore
|
Deliverables
| 50 bare dies
|
Signoff tools
| Cadence, Synopsys, Mentor Graphics
|
Foundational IPs
| Standard cell libraries: ARM / Synopsys GPIO : Aragio SRAM : ARM / Synopsys The foundational IPs have to be requested directly at the IP vendor: – ARM via DesignStart portal – Synopsys via DesignWare IP portal – For Aragio GPIO contact Jennifer Blakeman |
Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 5 months
|
mini@sic characteristics
| Not Supported
|
Bumping
| Cu Pillar and SnAg
|
The GLOBALFOUNDRIES 28SLPe process technology platform is optimized for power, performance and die cost. 28SLPe utilizes optical 0.9x shrink of designs drawn at 32nm dimensions.
GF 28SLPe | |
|---|---|
Technology characteristics | Core voltage:1V I/O voltage:1.5V/1.8V 1 poly and 6 – 11 levels of all Copper metal, plus Aluminum top layer metal 3 μm thickness copper layer for Inductors Temperature Range: -40°C to 125°C Vt Options: SLVt, LVt, RVt, HVt Device offerings: Standard FETs, Zero-Vt NFETs, BJTs, eFuse Resisitors:N+,P+ diffusion and N+,P+ polysilicon silicided,Nwell N+ diffusion and p+ polysilicon OP,High-precision p+ polysilicon OP Capacitors:Thin, Medium (EG) oxide NCAP, PCAP, VNCAP or APMOM Different devices available for eFlash designs |
Recommended Metal Stack on MPW
| Option #2 (6U1x_2T8x_LB)
|
Wafer size | 12inch |
Manufacturing location | Fab1 – Dresden, Germany
|
Deliverables
| 50 bare dies
|
Signoff tools
| Cadence, Synopsys, Mentor Graphics
|
Foundational IPs
| Standard cell libraries: ARM GPIO : Aragio SRAM : ARM The foundational IPs have to be requested directly at the IP vendor: – ARM via DesignStart portal – For Aragio GPIO contact Jennifer Blakeman |
Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 4.5 months
|
mini@sic characteristics
| Not Supported
|
Bumping
| Cu Pillar and SnAg
|
GLOBALFOUNDRIES 22nm FD-SOI transistor technology delivers FinFET-like performance and energy-efficiency, including up to 70% lower power vs. 28nm. The simultaneous high Ft /high Fmax, high self gain and high current efficiency of 22FDX enables efficient, ultra low power analog/RF/mmWave designs. The process offers reference flow for back-gate biasing and RF BEOL with ultra thick metal stacks. The eMRAM module supports fully integrated, versatile memory for storage and compute for IoT and MCU.
GF 22FDX | |
|---|---|
Technology characteristics | Non-shrink process Core voltage: 0.8V I/O voltage: 1.2V/1.5V/1.8V, LDMOS @ 3.3V/5V/6.5V 1 poly and 6 – 10 levels of all copper metal, plus thick aluminum top layer metal 6 Vt options: eLVt, SLVt, LVt, RVt, HVt, UHVt Qualified for Automotive Grade 1 (-40°C to 150°C) Device offerings: Standard FETs, Diodes, BJTs, Passives (Resistors, AP/SP MOM, eFuse, Varactor, Parasitic Caps), SRAM (ULL, HD, SP, DP), ESD RF/mmWave support: FETs, Resistor, Inductor, Varactor, APMOM, Tx Line Special offering: eMRAM |
Wafer size | 12inch |
Manufacturing location | Fab1 – Dresden, Germany
|
Deliverables
| 50 dies for general MPW, 25 dies for mini@sic run
|
Signoff tools
| Cadence, Synopsys, Mentor Graphics
|
Foundational IPs
| Standard cell libraries: Synopsys GPIO : Synopsys SRAM : Synopsys The foundational IPs have to be requested directly at Synopsys via DesignWare IP portal |
Double patterning and Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 3.5 months
|
mini@sic characteristics
| Supported Block size:1250µm x 1250µm (incl. Crackstop) BEOL stack: Option #19 (10M_2Mx_5Cx_1Jx_2Qx_LB) Interconnect: Inline Wirebond Turnaround time: ca. 4.5 months |
Bumping
| Available only for general MPW (Cu Pillar and SnAg)
|
The 12nm GLOBALFOUNDRIES 12LP+ FinFET process technology platform is ideal for high-performance, power-efficient SoCs in demanding, high-volume applications. 3D FinFET transistor technology provides best-in-class performance and power with significant cost advantages from 12nm area scaling. The 12LP+ technology can provide up to 20% higher device performance and 36% lower total power compared to the 12LP technology.
GF 12LP+ | |
|---|---|
Technology characteristics | Based on 14LPP technology Dual STI Core voltage: 0.8V I/O voltage: 1.2V / 1.35V / 1.5V / 1.8V BEOL Stack options: 8ML / 9ML / 10ML / 11ML / 13ML SLVT, LVT, RVT, HVT, DDB, SDB, Single Fin Logic Device offerings: ESD diodes, vertical BJT, VNCAP, Standard MIM, Adv MIM, Inductors, Precision MOL Resistor, eFuse |
Wafer size | 12inch |
Manufacturing location | Fab8 – Malta, New York, USA
|
Deliverables
| 50 bare dies
|
Signoff tools
| Cadence, Synopsys, Mentor Graphics
|
Foundational IPs
| Standard cell libraries: ARM GPIO : ARM SRAM : ARM The foundational IPs have to be requested directly at the IP vendor ARM via DesignStart portal |
Double patterning and Dummy filling
| To be done by the customer
|
MPW block size
| 9mm² with a min. edge length of 1mm, flexible aspect ratio
|
Turnaround time
| ca. 5.5 months
|
mini@sic characteristics
| Not supported
|
Bumping
| Cu Pillar and SnAg
|
