UMC

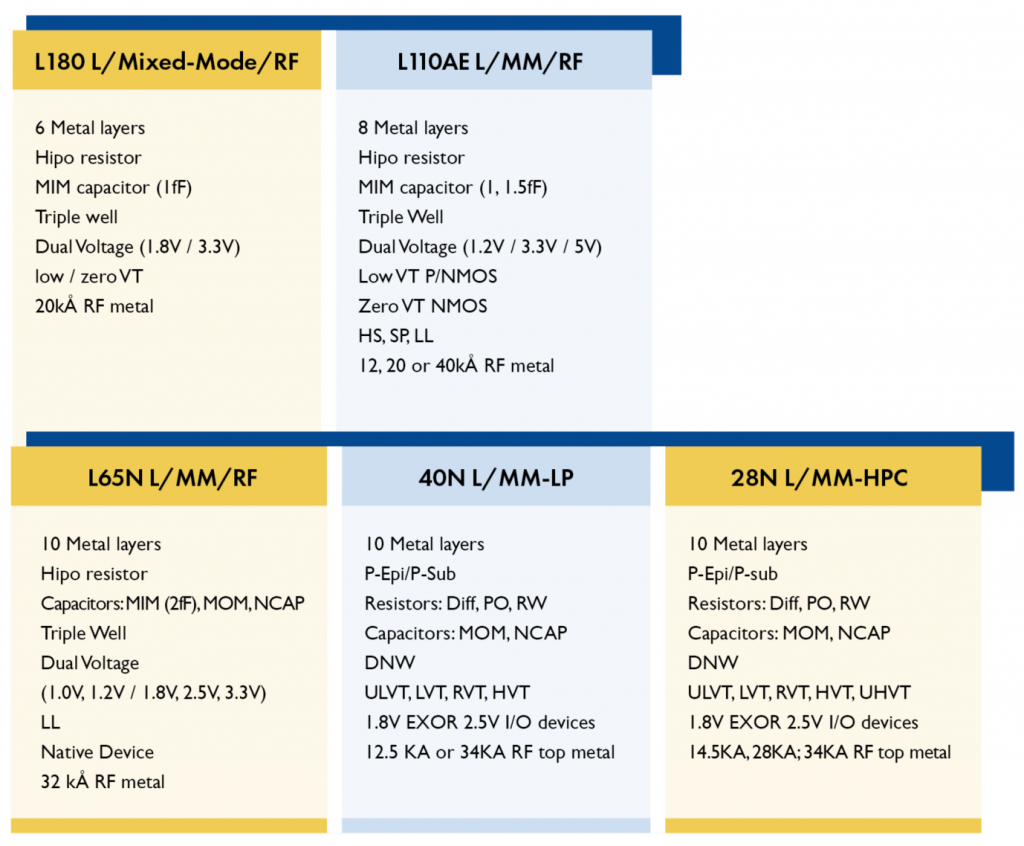

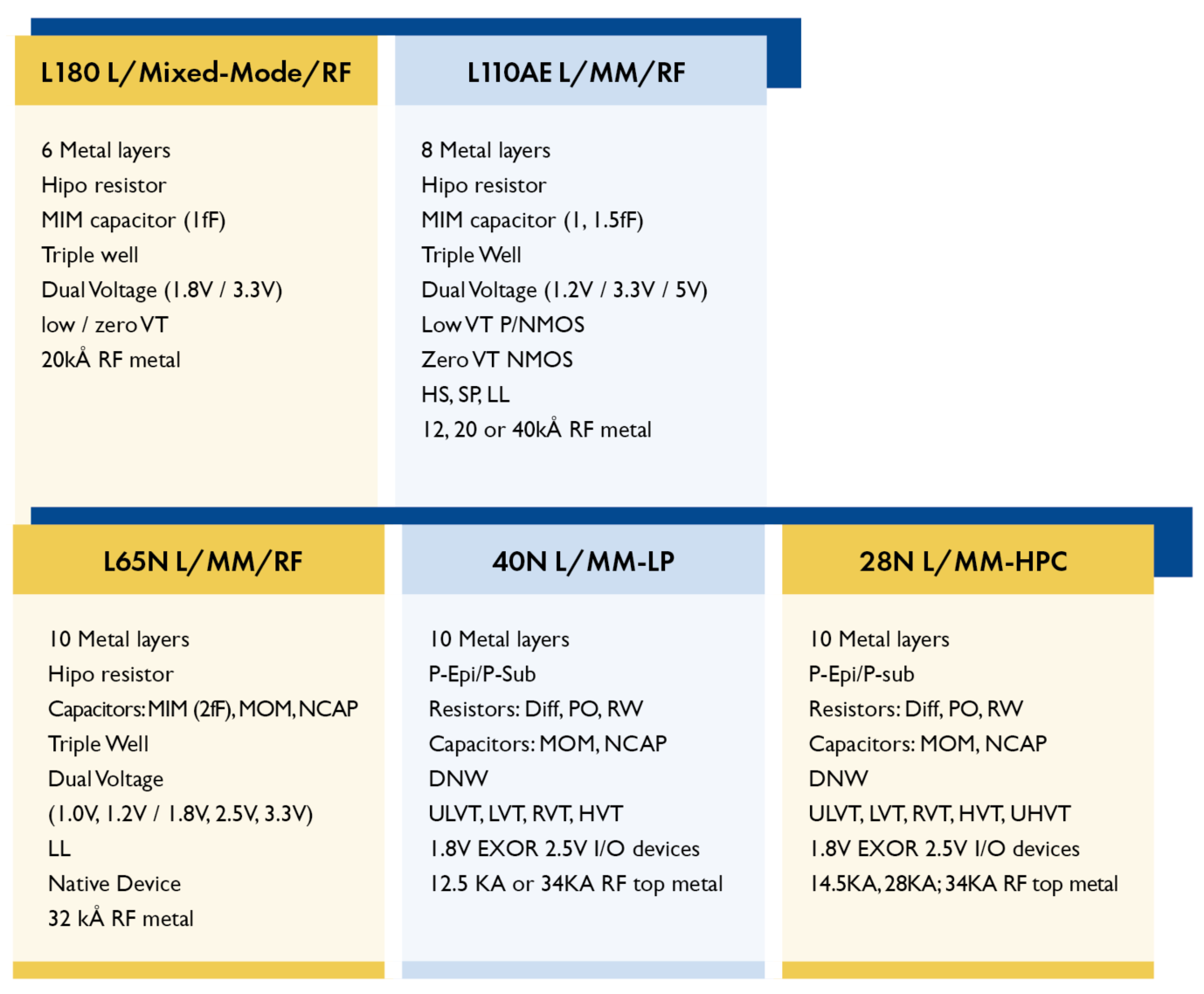

Imec offers EUROPRACTICE customers access to the UMC technologies.

UMC L180 MM/RF 1.8V/3.3V 1P6M technology.

L180 Mixed Mode/RF 1.8V/3.3V 1P6M
Technology characteristics	Shrink technology: NO Core voltage: 1.8V I/O voltage: 3.eV Shallow Trench Isolation (STI) Triple well Substrate resistivity: 15~25 Ohm.cm on <100> P- substrate Std Vt, 3.3V LVt PMOS, 3.3V LVt NMOS, 1.8V LVt PMOS, 1.8V LVt NMOS, 3.3V zero_Vt NMOS Temperature range: -40C to 125C # of metals: 6 Interconnect material: Al Dielectric: FSG Top metal: 8KA, 12 KA or 20KA Inductors MoM MiM: 1fF/µm² Passivation: single
Options that need special attention	OTP
Wafer size	8 inch
Deliverables	# of dies: 50 for an MPW, 25 for a mini@sic run
Design tools	Cadence CDBA, Cadence OA, Laker, Mentor, Tanner, ADS
Simulation tools	HSPICE, Eldo, Spectre
Verification tools DRC	Cadence, Mentor Graphics, Synopsys
Verification tools LVS	Cadence, Mentor Graphics, Synopsys
Parasitic extraction tools	Cadence, Mentor Graphics, Synopsys
P&R tools	Cadence, Synopsys
Foundry IP	Faraday standard cell libraries Faraday I/O library 3.3V Faraday memories
MPW block size	5mm x 5mm
Mini@sic characteristics	Supported Block size: 1525µm x 1525µm I/O voltage: 3.3V Metal stack: 1P6M with 20KA top metal Mimcap density 1fF/µm²
Bumping	On request

0.11 µm Logic and Mixed-Mode 1P8M Metal Metal Capacitor Al Advanced Enhancement Process.

L110AE Logic/Mixed-Mode/RF
Technology characteristics	Shrink technology: YES Core voltage: 1.2V I/O voltage: 1.8V/2.5V/3.3V/5V Shallow Trench Isolation (STI) Triple well Substrate resistivity 15~25 ohm.cm on <100> P- substrate Vt options: HS, SP, LL, HS_SP, HS_LL, SP_LL and HS_SP_LL Temperature range: -40C~125C # of metals: 8 Interconnect material: AlCu Dielectric: USG Top metal: 20KA or 40KA Inductors MoM MiM: 1.0fF/µm² or 1.5fF/µm² or 2.0fF/µm² Passivation: single
Wafer size	8 inch
Deliverables	# of dies (no wafer!): 50 on an MPW, 25 on a mini@sic
Design tools	Cadence CDBA, Laker
Simulation tools	HSPICE, Eldo, Spectre
Verification tools DRC	Cadence, Mentor Graphics, Synopsys
Verification tools LVS	Cadence, Mentor Graphics, Synopsys
Parasitic extraction tools	Cadence, Mentor Graphics, Synopsys
P&R tools	Cadence, Synopsys
Foundry IP	Gate density I/O voltage, OD, UD RAM/ROM/Dual port/register files)
MPW block size	5mm x 5mm
Mini@sic characteristics	Not supported
Bumping	At request

65 nm Logic and Mixed-Mode Low Leakage Low-K Process.

L65N Logic/Mixed-Mode/RF – Low Leakage
Technology characteristics	Shrink technology: NO Core voltage1.2V I/O voltage 1.8V, 2.5V, 3.3V overdrive MOAT Twin and triple well Substrate resistivity 7~17 ohm.cm on Epi- substrate LL_RVT, LL_HVT, LL_LVT Temperature range -40C to 125C # of metals: 10 Interconnect material: Cu Interconnect dielectric: FSG Top metal: 8kA, 32.5kA RDL: 32.5kA Inductors MoM MiM: 2fF/µm² Passivation: single
Wafer size	12 inch
Deliverables	90 samples
Design tools	Cadence CDBA, Laker
Simulation tools	HSPICE, Eldo, Spectre
Verification tools DRC	Cadence, Mentor Graphics, Synopsys
Verification tools LVS	Cadence, Mentor Graphics, Synopsys
Parasitic extraction tools	Cadence, Mentor Graphics, Synopsys
P&R tools	Cadence, Synopsys
Foundry IP	Standard cells I/O library: NA
MPW block size	4000µm x 4000µm
Mini@sic characteristics	Supported Block size: 1875µm x 1875µm 2.5V/2.5_OD3.3V 1P8M1T0F1U (U=32.5kA) Mimcap 2fF
Bumping	At request

40 nm Logic and Mixed-Mode Low Power Process.

40N Logic/Mixed-Mode – Low Power
Technology characteristics	Shrink technology: NO Core voltage 0.9V I/O voltage 1.8V, 2.5V MOAT Twin and triple well Substrate resistivity 10~15 ohm.cm on Epi- substrate LP_RVT, LP_HVT, LP_LVT, LP_UHVT Temperature range -40C to 125C # of metals: 10 Interconnect material: Cu Interconnect dielectric: FSG Top metal: 8kA, 12kA, 32.5kA RDL: 12.5kA, 34kA MoM MiM: 2fF/µm² Passivation: single
Wafer size	12 inch
Deliverables	90 samples
Design tools	Cadence CDBA, Laker
Simulation tools	HSPICE, Eldo, Spectre
Verification tools DRC	Cadence, Mentor Graphics, Synopsys
Verification tools LVS	Cadence, Mentor Graphics, Synopsys
Parasitic extraction tools	Cadence, Mentor Graphics, Synopsys
P&R tools	Cadence, Synopsys
Foundry IP	Standard cells I/O library: NA
MPW block size	4000µm x 4000µm
MPW Turnaround time	18-20 weeks
Mini@sic characteristics	Not supported
Bumping	At request

28 nm Logic and Mixed-Mode High Performance Compact Process.

28N Logic/ Mixed-Mode – HPC
Technology characteristics	Shrink technology: NO Core voltage 1.0, 1.1V I/O voltage 1.8V, 2.5V MOAT Twin and triple well Substrate resistivity 15~25 ohm.cm on Epi- substrate UHVT, HVT, RVT, LVT, ULVT Temperature range -40C to 125C # of metals: 10 Interconnect material: Cu Dielectric: FSG Top metal: 8kA, 12kA, 32.5kA RDL: 14.5kA, 28kA MoM MiM: 2fF/µm² Passivation: single
Wafer size	12 inch
Deliverables	90 samples
Design tools	Cadence CDBA, Laker
Simulation tools	HSPICE, Eldo, Spectre
Verification tools DRC	Cadence, Mentor Graphics, Synopsys
Verification tools LVS	Cadence, Mentor Graphics, Synopsys
Parasitic extraction tools	Cadence, Mentor Graphics, Synopsys
P&R tools	Cadence, Synopsys
Foundry IP	Standard cells I/O library: NA
Dummy filling	by Foundry
MPW block size	4000µm x 4000µm
MPW Turnaround time	20-22 weeks
Mini@sic characteristics	Not supported
Bumping	At request

Explore more UMC technology options for General MPW and mini@sic runs:
